Equipment
Van Leeuwen Verankeringen en Funderingssystemen has an extensive range of machinery, including self-developed equipment, for the professional testing of anchors and pile systems.
All anchors are tested and tensioned in accordance with the Cur 166 procedure for sheet piling structures. If desired, piles can be tested in accordance with the Cur 236 test procedure for anchor piles.
Van Leeuwen carries out the following tests:
- Check test
- Suitability test
- Failure test.
We often use equipment that we have developed ourselves. An important advantage is that the equipment is interchangeable and that the best combination to match the situation at hand can always be selected.
You can find concise descriptions of the various machines and their main properties below.
True

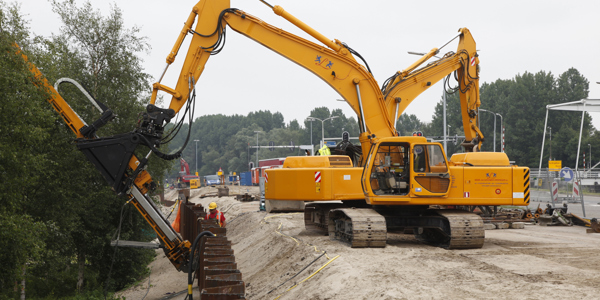

- Large Leeuwanchors and Leeuwanchor piles;
- Weight approx. 95 metric tonnes;
- Anchor rods up to 7 m;
- Full rotation is possible;
- 0 - 90°.
True

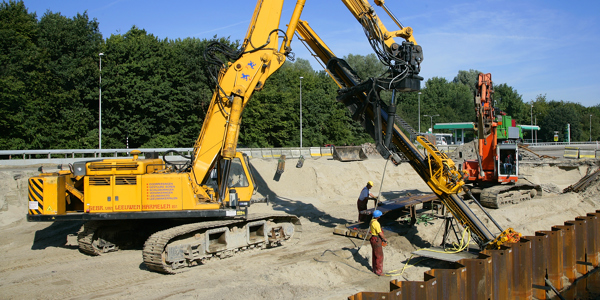

- Medium category Leeuwanchors and Leeuwanchor piles
- Weight approx. 35 metric tonnes;
- Anchor rods up to 4 m;
- Full rotation is possible;
- 0 - 90°.
True

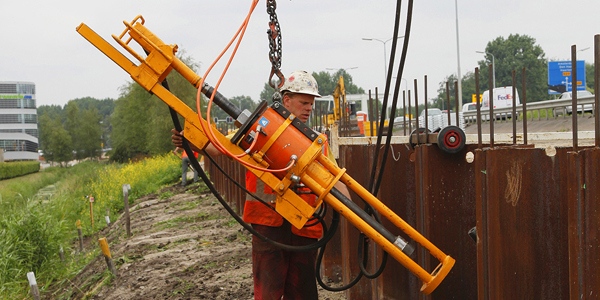

- The smallest machine;
- Suitable for the smallest Leeuwanchors and Leeuwanchor piles;
- Weight approx. 10 metric tonnes;
- Anchor rods up to 2.8 m;
- Full rotation is possible;
- 0 - 90°.
True
- All types of Leeuwanchors and Leeuwanchor piles;
- Also suitable for strand anchors and GEWI piles (cased hole drilling systems);
- Weight approx. 17 metric tonnes;
- Anchor rods up to 4 m;
- The machine can drill in a direction away from itself and vertically.
True

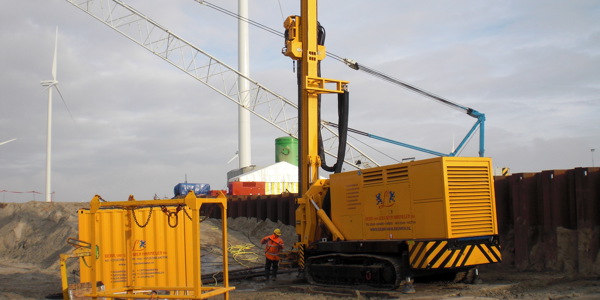

- Installing LEKA piles;
- The machine can be used at restricted heights, or indoors;
- Tube diameters from Ø355 to Ø554 mm are possible;
- Installing piles at all angles of inclination;
- Weight approx. 65 metric tonnes.
True
- This rail enables LEKA machines to also be used for installing Leeuwanchor piles;
- All types of Leeuwanchor pile;
- Weight approx. 65 metric tonnes.
True

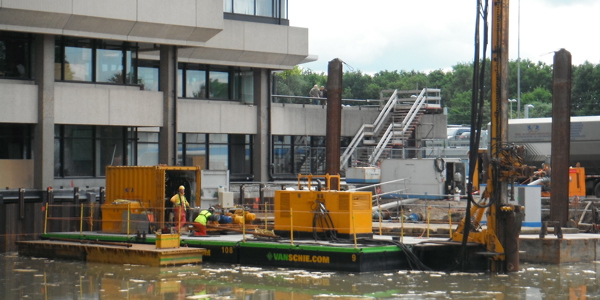

- This mast enables Leeuwanchor piles to be installed from a pontoon and is suitable for use in a wet construction pit;
- It offers possibilities to screw the piles down to a lower level by means of an extender.
True
- Own equipment
- Professional testing of anchors and pile systems
- Check, suitability and failure tests.
